Cube

This convex is the intersection of six rather large halfspaces (holes) which yield six unconnected patches.



SPECIFICATION

CONVEX CARTESIAN
    1  0  0 -0.6
    0  1  0 -0.6
    0  0  1 -0.6
   -1  0  0 -0.6
    0 -1  0 -0.6
    0  0 -1 -0.6

NORMAL FORM

REGION CONVEX CARTESIAN
    1  0  0 -0.6
    0  1  0 -0.6
    0  0  1 -0.6
   -1  0  0 -0.6
    0 -1  0 -0.6
    0  0 -1 -0.6

C# CODE

Region reg = new Region();
Convex con = new Convex();
con.Add( new Halfspace(1.0,  0.0,  0.0, false, -0.6));
con.Add( new Halfspace(0.0,  1.0,  0.0, false, -0.6));
con.Add( new Halfspace(0.0,  0.0,  1.0, false, -0.6));
con.Add( new Halfspace(-1.0,  0.0,  0.0, false, -0.6));
con.Add( new Halfspace(0.0, -1.0,  0.0, false, -0.6));
con.Add( new Hslfspace(0.0,  0.0, -1.0, false, -0.6));
List<Int64Pair> rangelist = Cover.Hidrange(reg);

COVERMAP

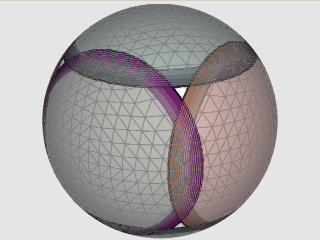

There are 8 corners with 4 partial trixels each. Each of these forms a single run of level 20 HtmID numbers, and therefore create a single range. This is a coincidence. In general, we can not presume to be this lucky. One such corner is seen above

 9878424780800,  9895604649983
10977936408576, 10995116277759
12077448036352, 12094627905535
13176959664128, 13194139533311
14276471291904, 14293651161087
15375982919680, 15393162788863
16475494547456, 16492674416639
17575006175232, 17592186044415
